Regular price€1.979,95
/
Product
Features the GXH50 engine by Honda, a commercial grade engine that will never let you down. This winch is inexhaustible and will be your ally to do whatever job you have to do; whether it's for pulling trees out of the woods, getting a stuck vehicle out, or any other purpose.

Warranty: 5 years

See details


The original winch.

The sturdy design of the PCW5000 still proudly bears the Portable Winch signature quality and durability; an ingenious product, to deliver lasting power, without compromise. Thanks to its industrial-grade GXH50 4-stroke engine, this winch delivers all its power for several hundred hours with a constant pulling speed of 12 m (40 ft) per minute. The capstan winch concept allows to pull loads without loss of power, in a simple, effective, and safe way.
For more speed, a larger drum of 85 mm (3 ⅜ in) is available as an option to reach a 50% faster pulling speed of 18 m (60 ft) per minute.

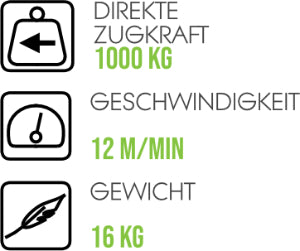

The PCW5000 develops a remarkable pulling force of 1,000 kg (2,200 lb) over an unlimited length of rope. Use a block and tackle to get up to five times (5x) the pulling force. This means, with two double pulleys, you could pull up to 5,000 kg (11,000 lb)!

  • Unleaded gasoline, 86 octane or higher
  • Direct drive (no clutch)
  • Standard drum size: 57 mm (2-1/4 in)
  • Optional drum size: 85 mm (3-3/8 in)

* Click on the "Download" tab to get the detailed product specifications, user manual and more.

  1. PCW5000
  2. Rope bag to store and carry your rope
  3. 50 m (164 ft) rope for smooth pulling operations
  4. RopeWizerTM - The Easy Splice to retain nearly 100% of the capacity of your rope and easily attach the carabiner
  5. Single pulley to either deviate the pull angle or double the power of the winch
  6. Steel locking carabiners 2x; one to link the pulley to the sling and one for the end of your rope
  7. Safety Hook with Latch to place at the end of the rope to easily attach to the load
  8. 2 m (6 ½ ft) Polyester sling to attach the pulley to a tree for example
  9. 2.5 m (8 ¼ ft) round polyester sling to anchor the winch wherever you need it!
  1. PCW5000
  2. 2.5 m (8 ¼ ft) round polyester sling to anchor the winch wherever you need it!
