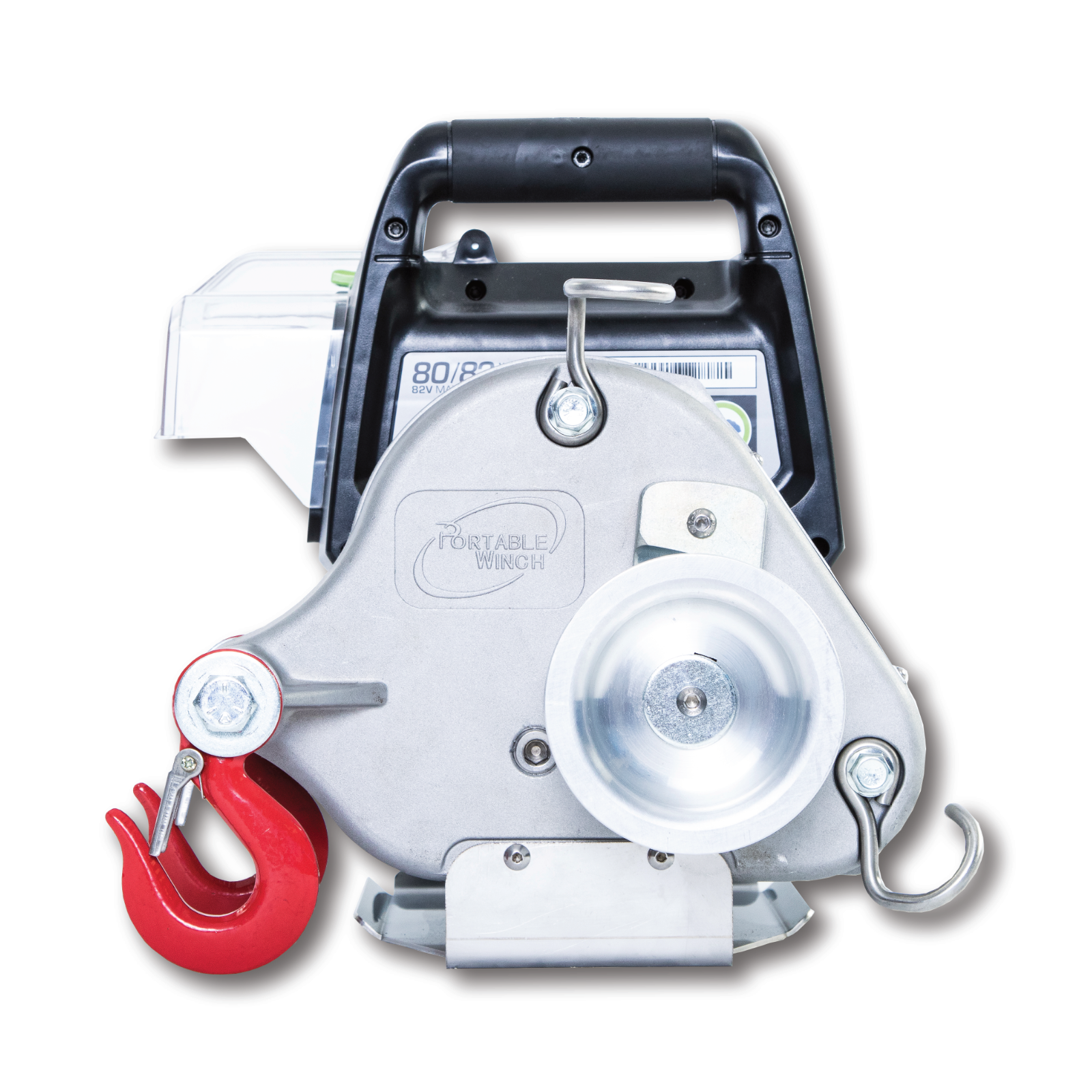

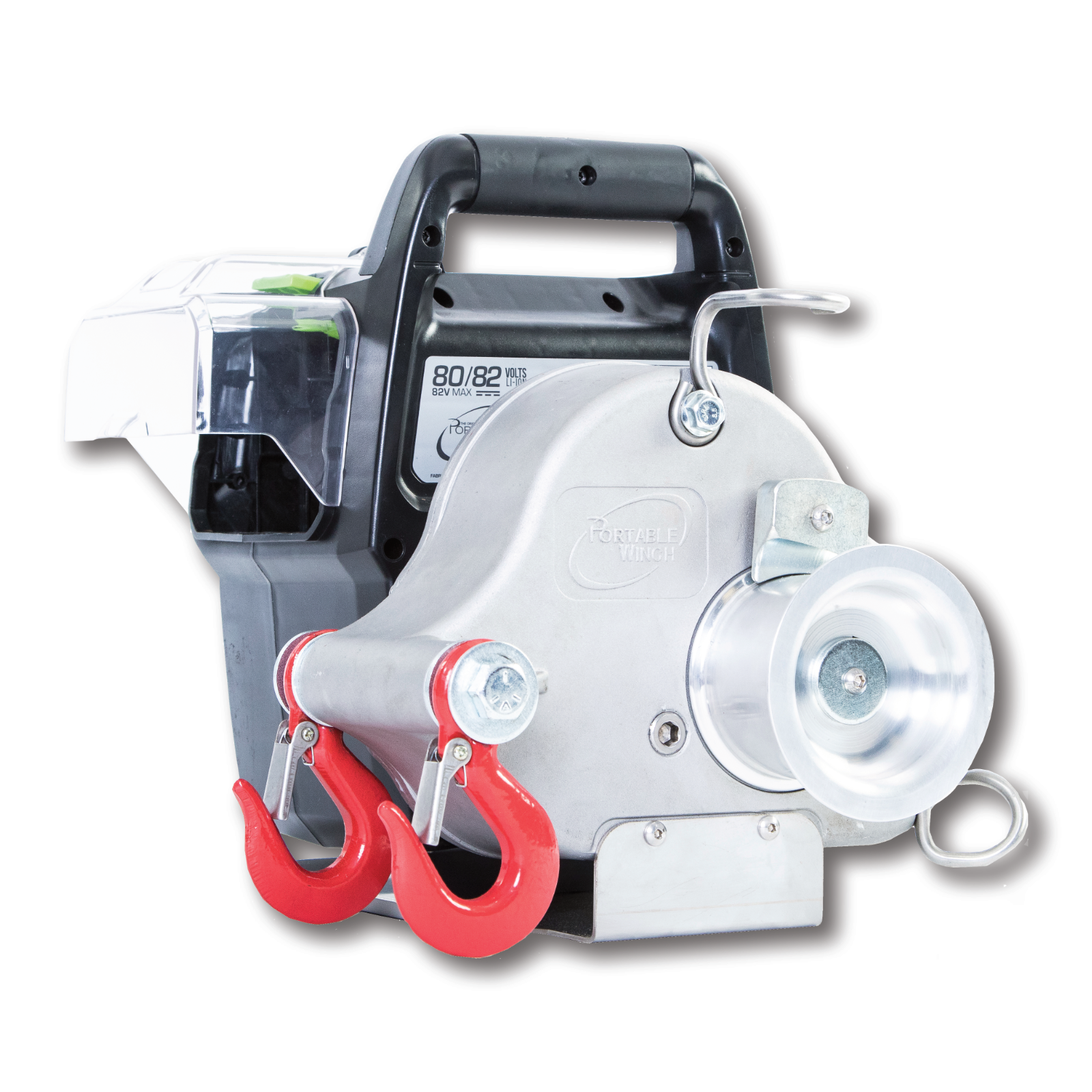

Rapid Fire Info

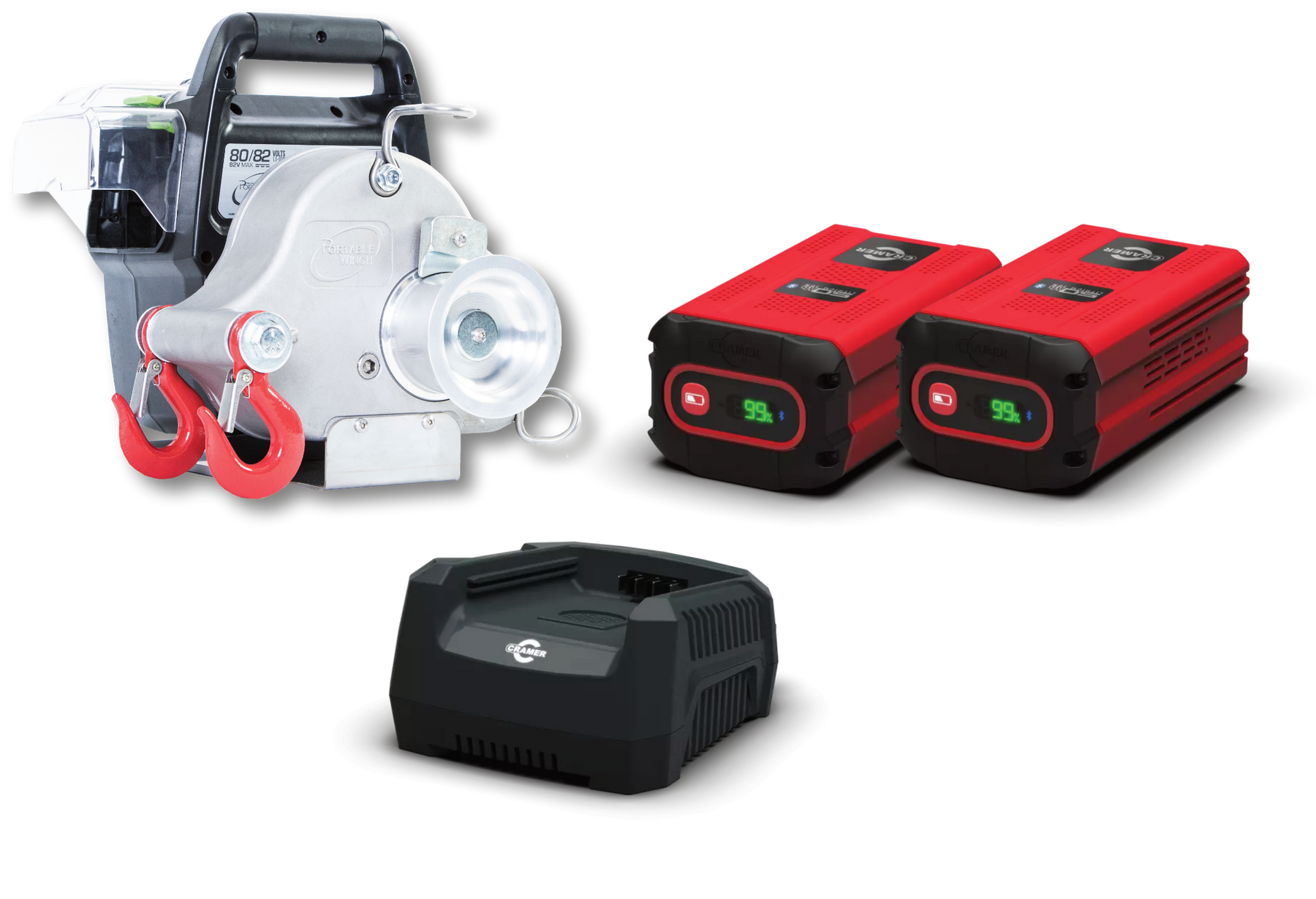

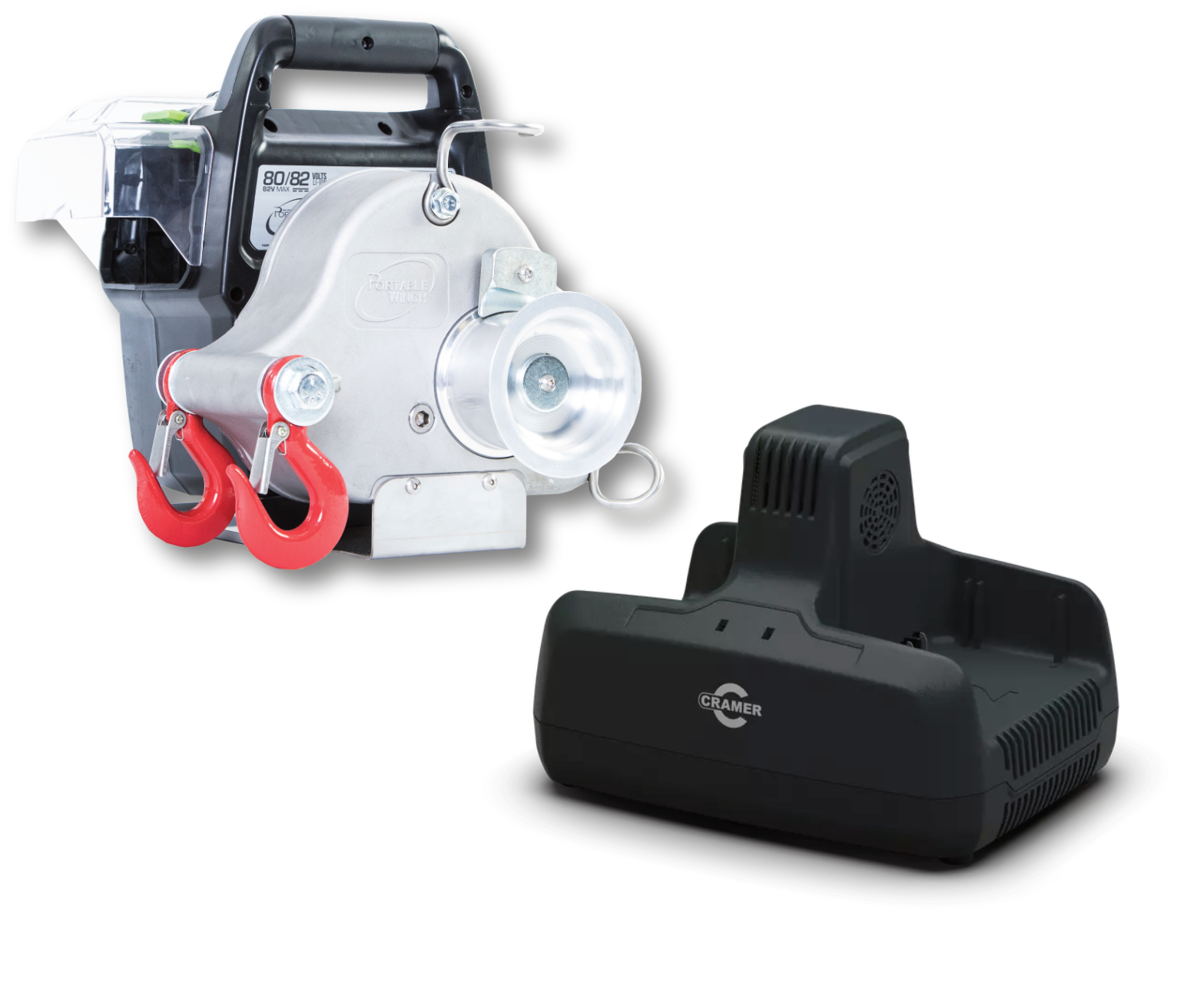

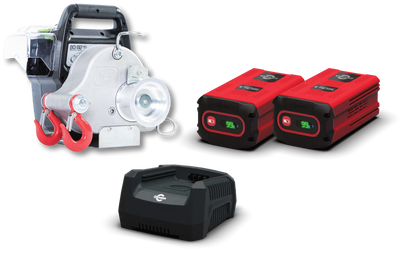

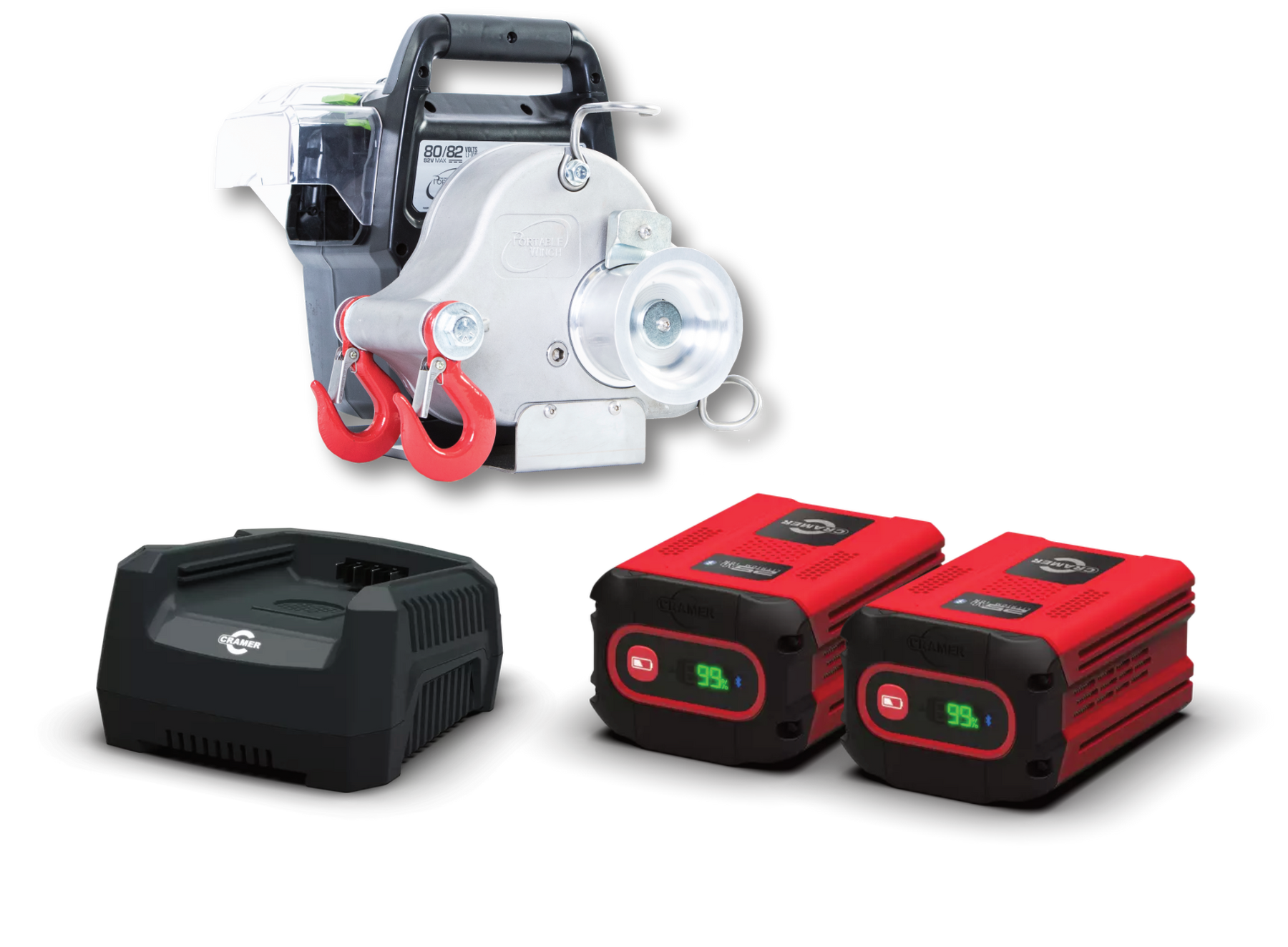

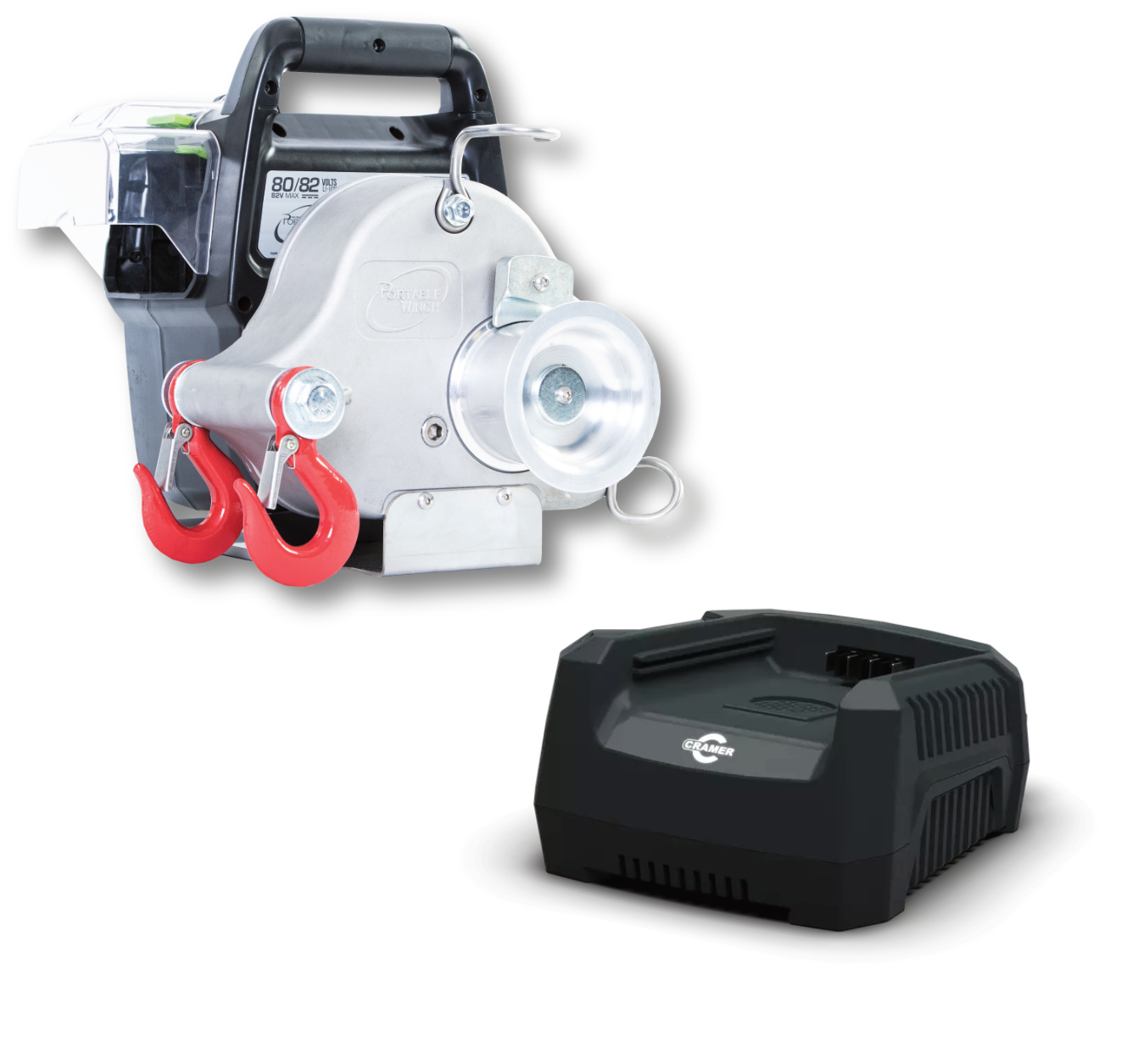

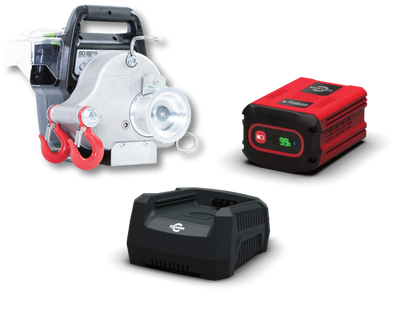

- Battery and charger not included!
- Designed in 2018

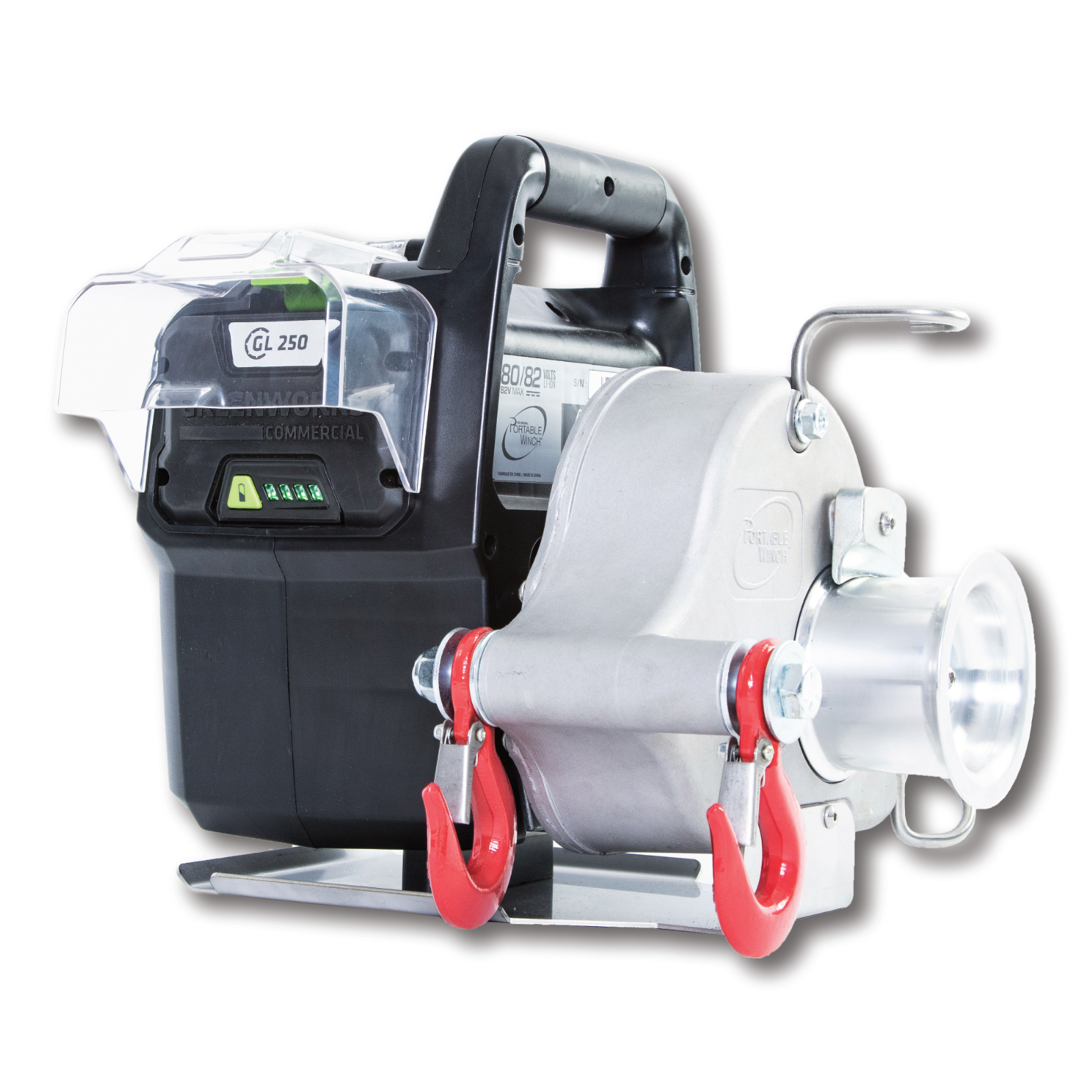

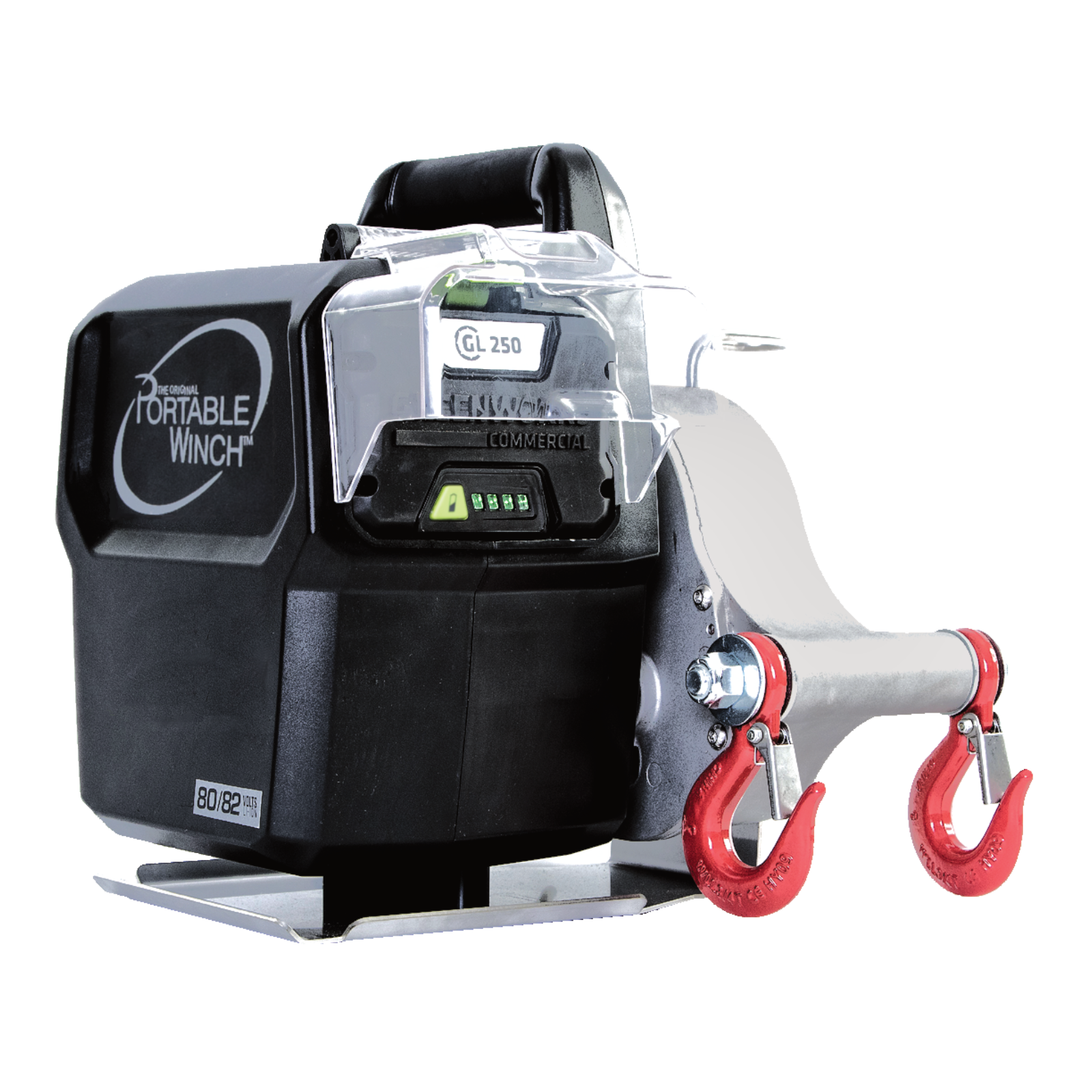

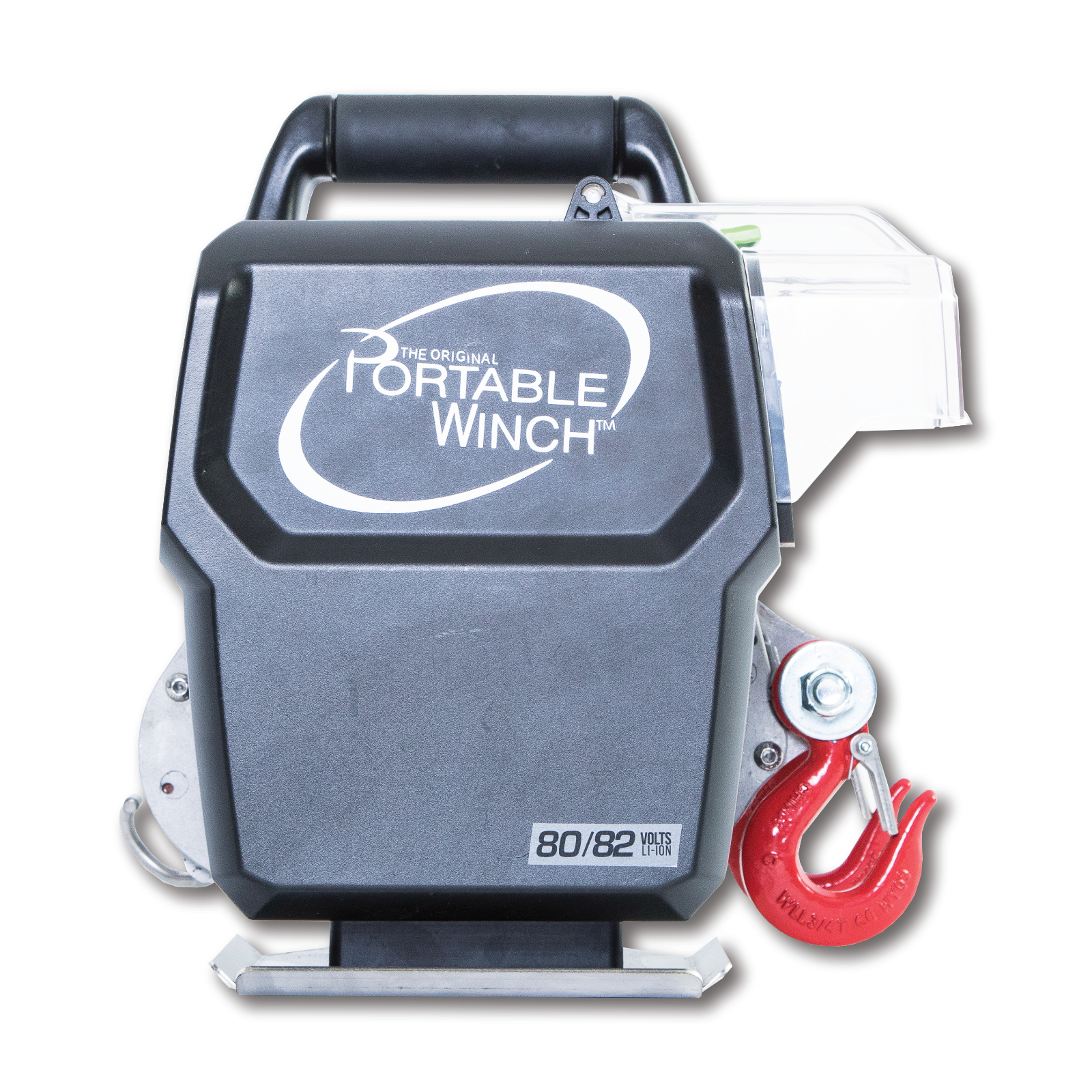

- Powered by Portable Winch Brushless electric motor - 360° inclinable - 1.0 kW - 82 Volts

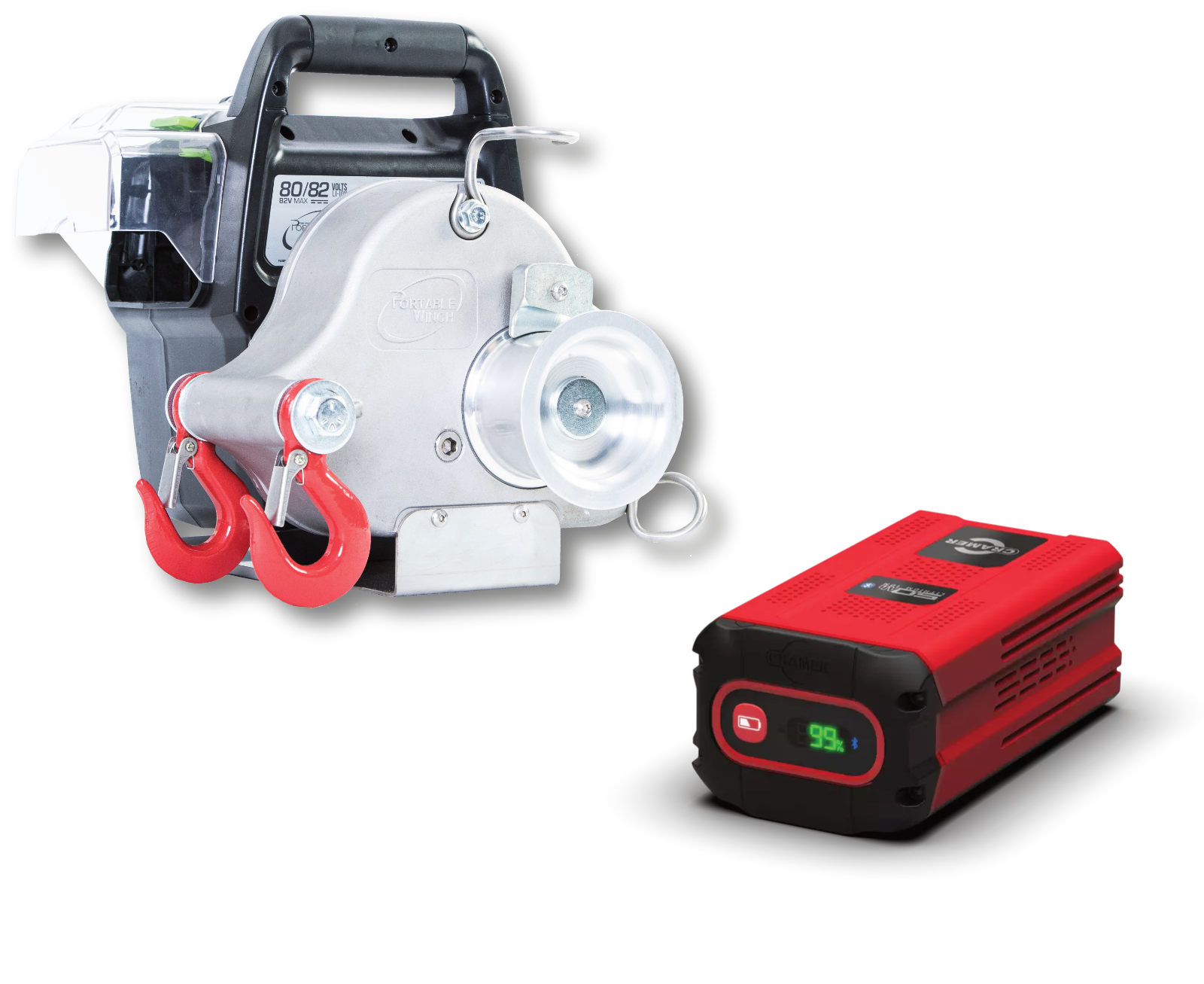

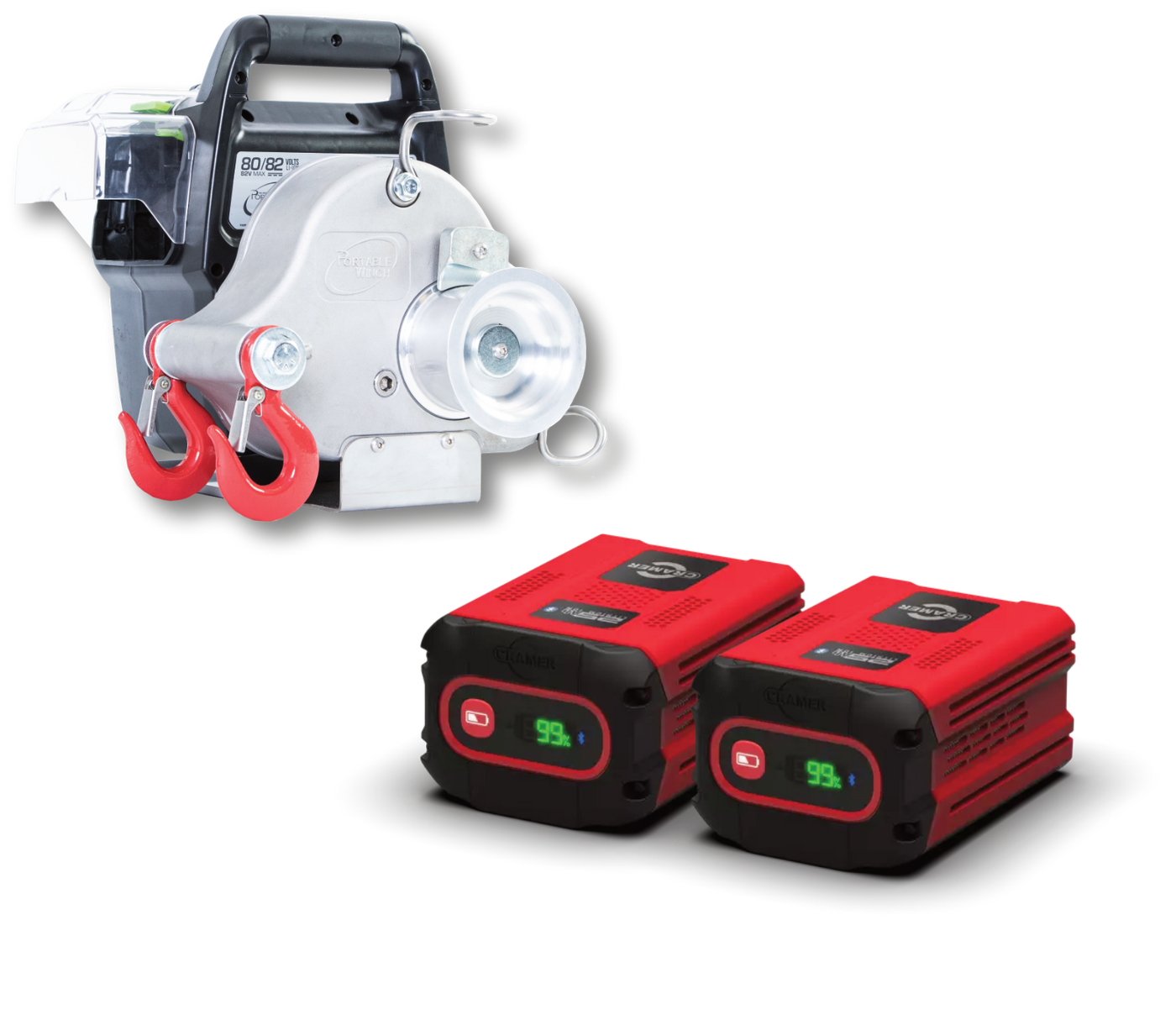

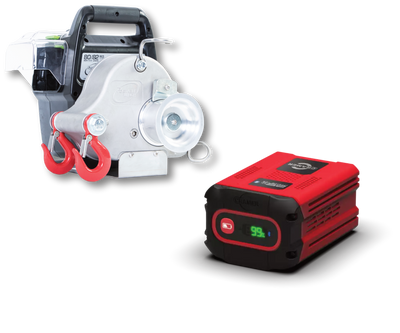

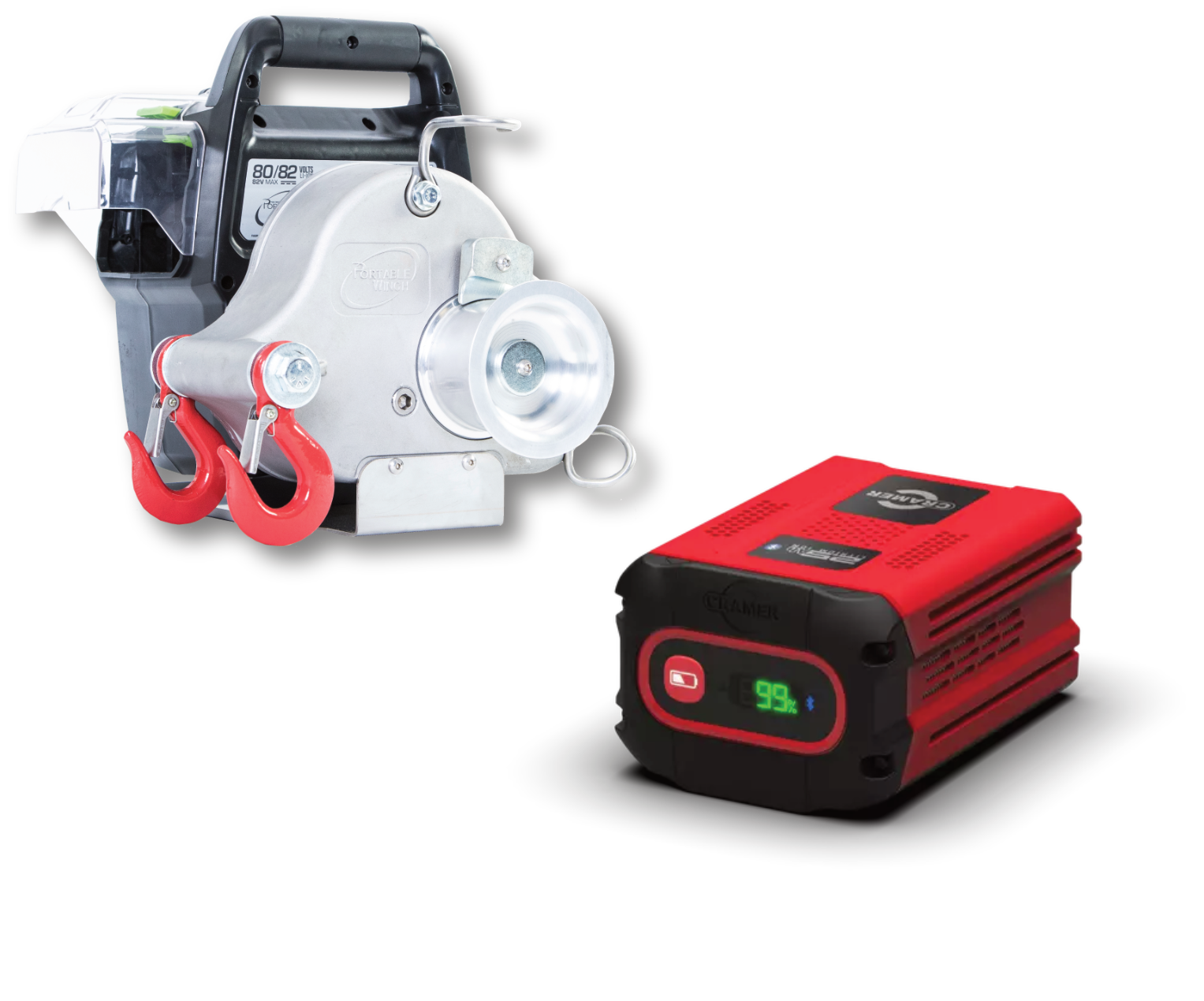

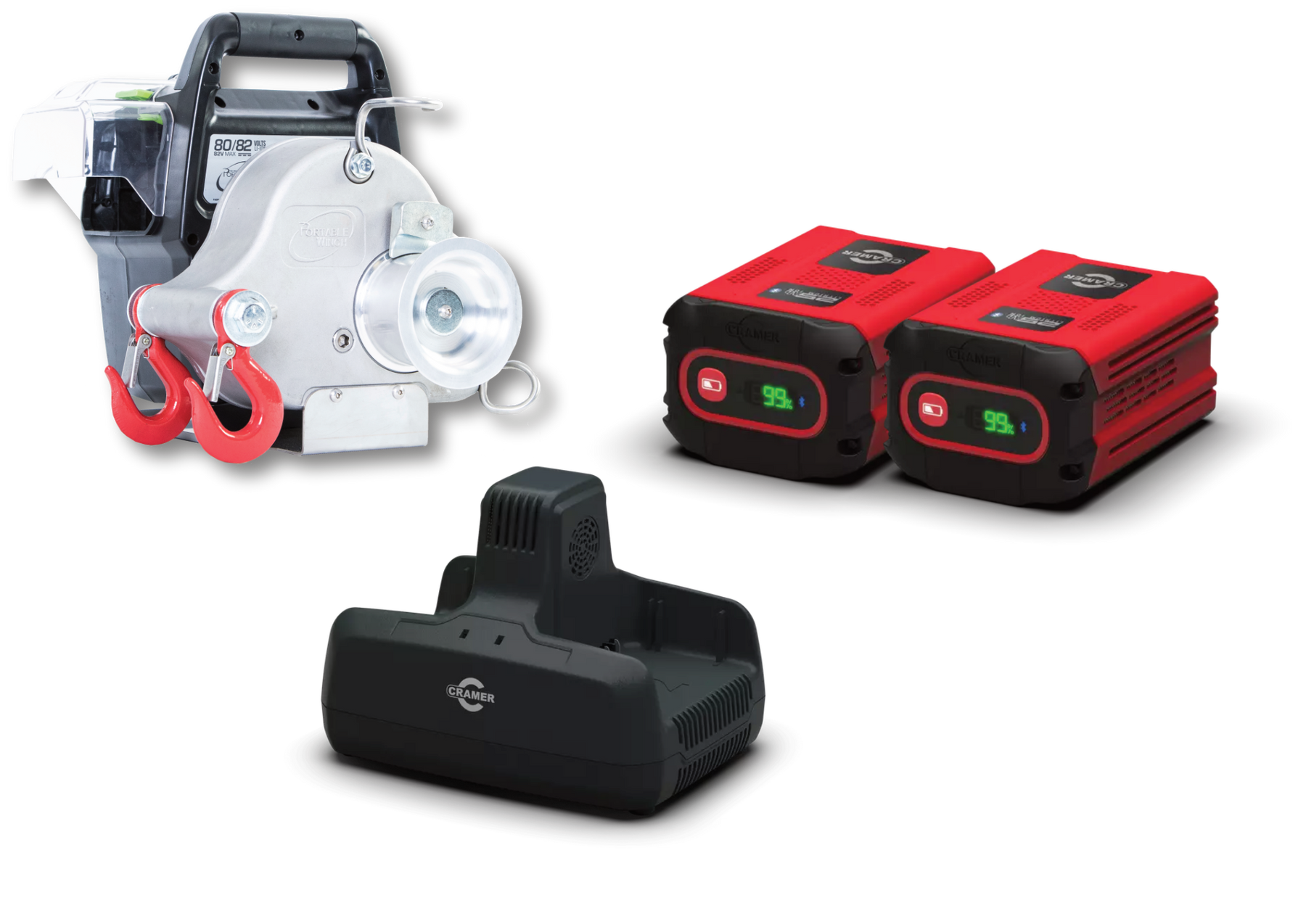

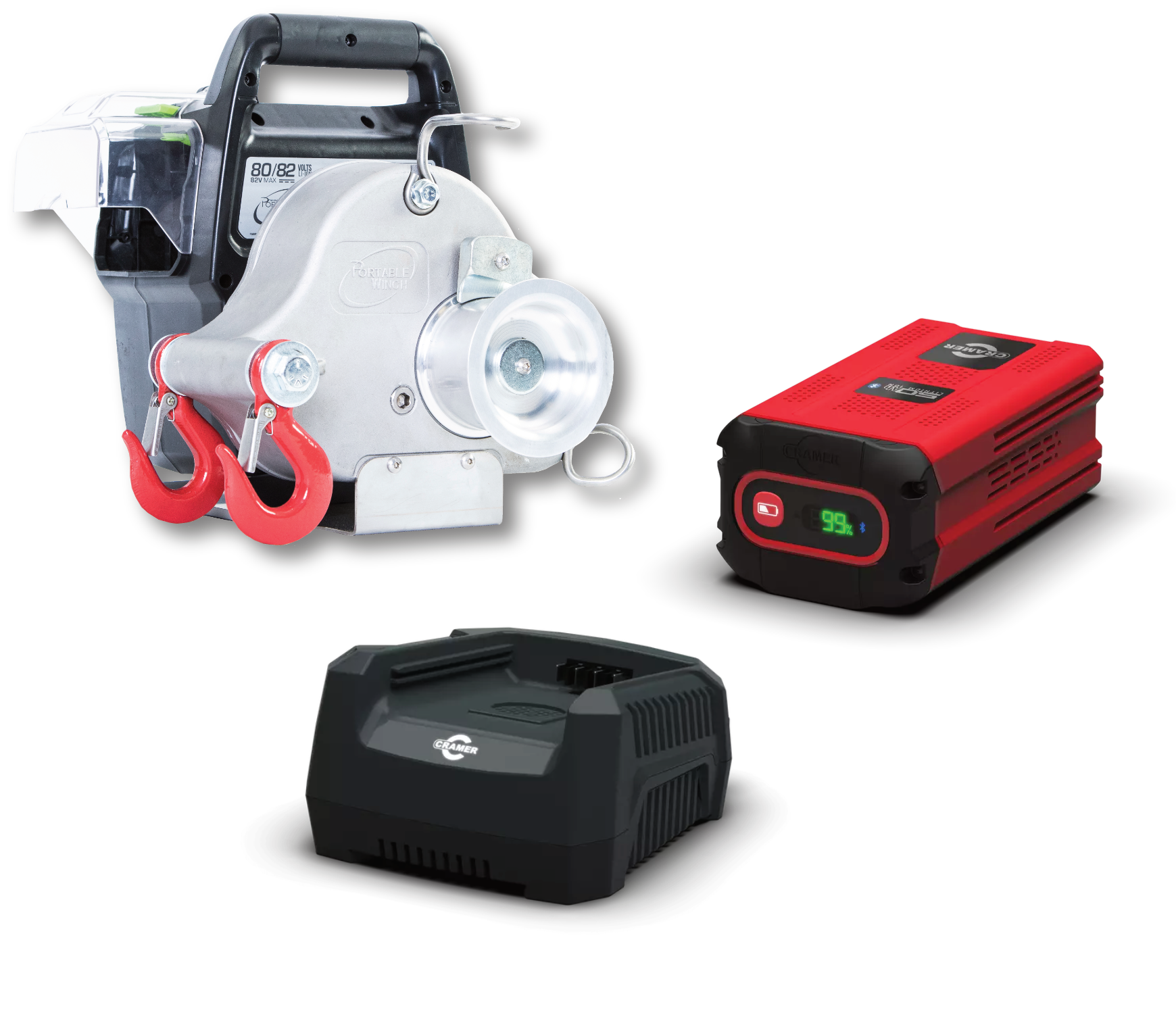

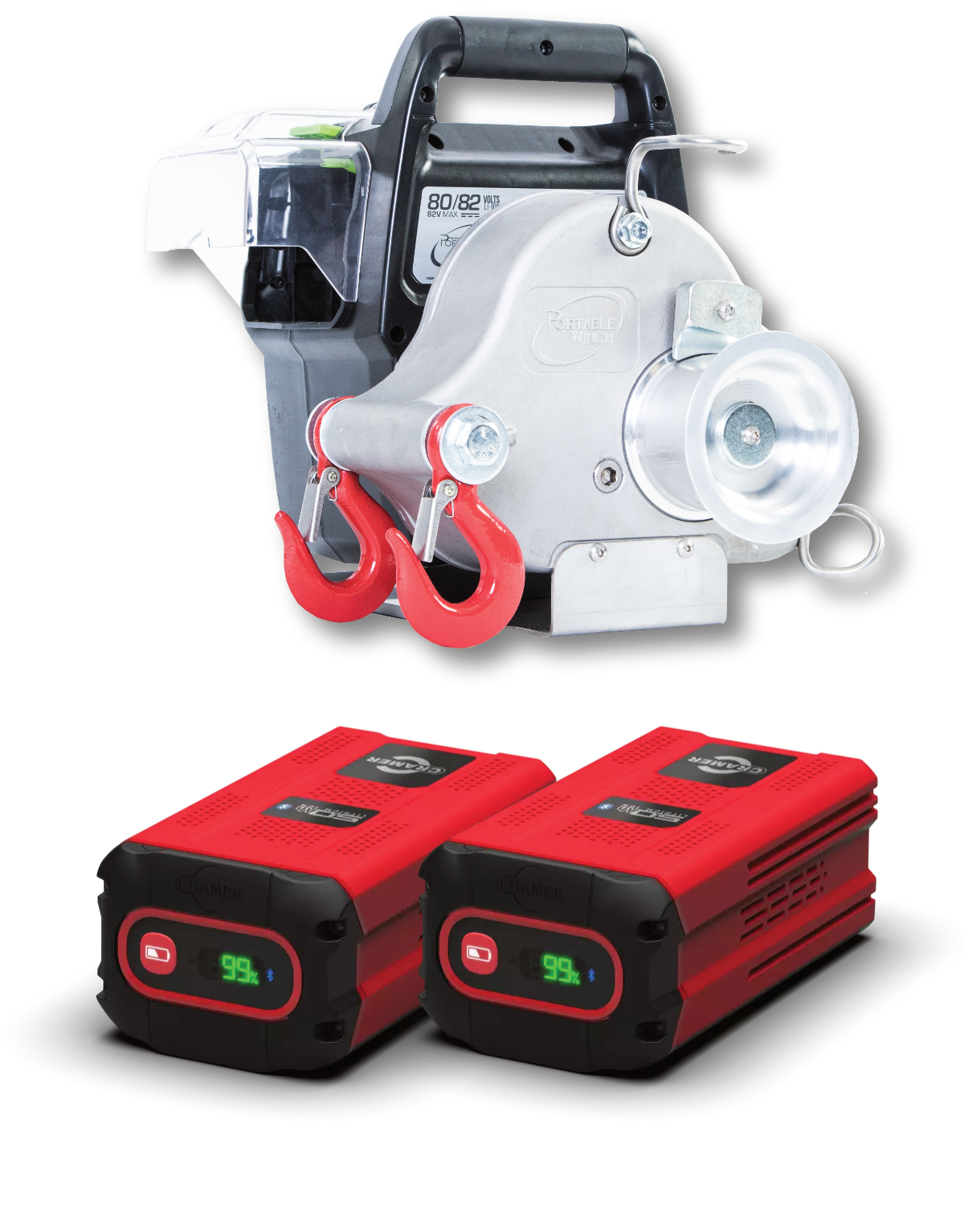

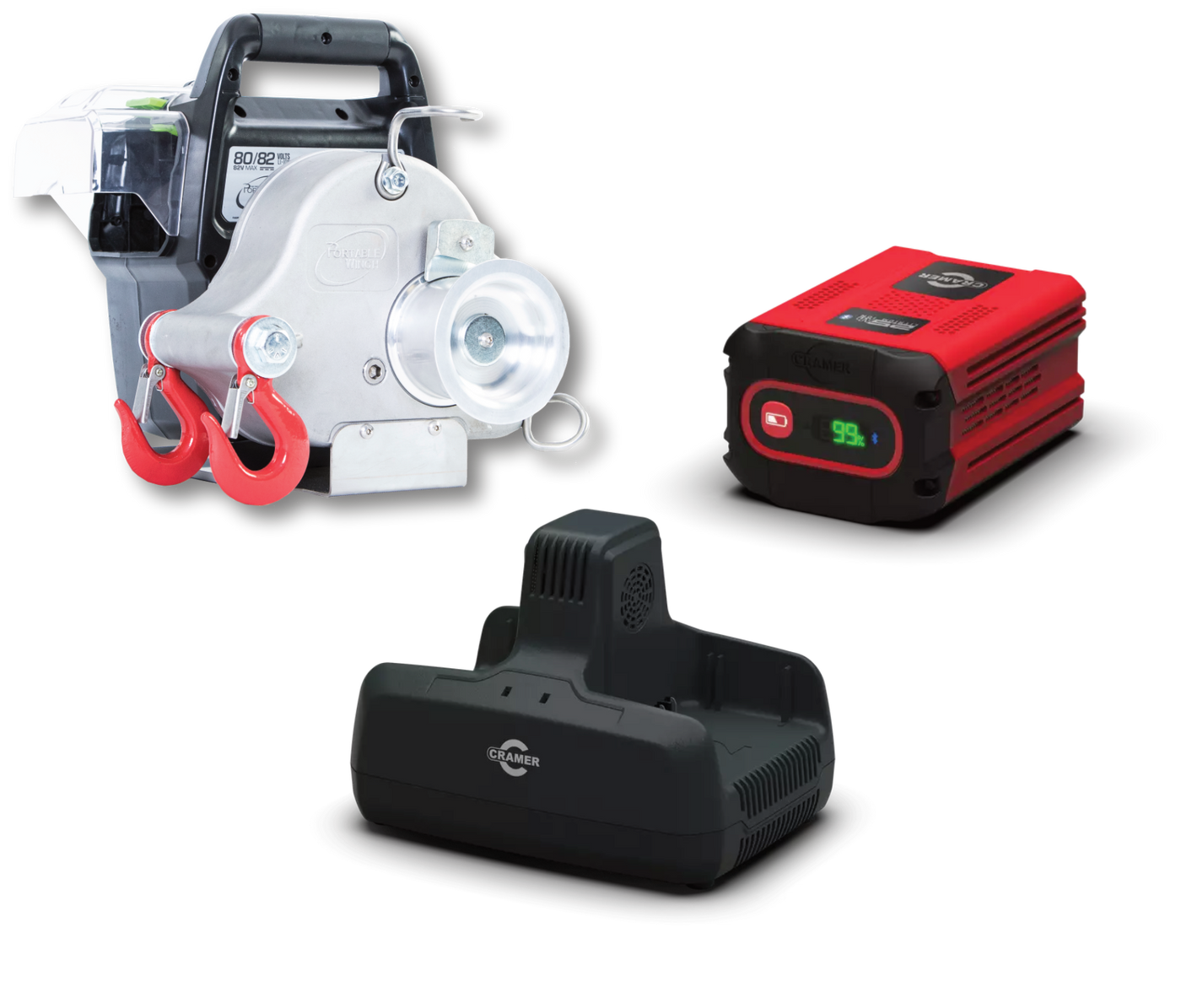

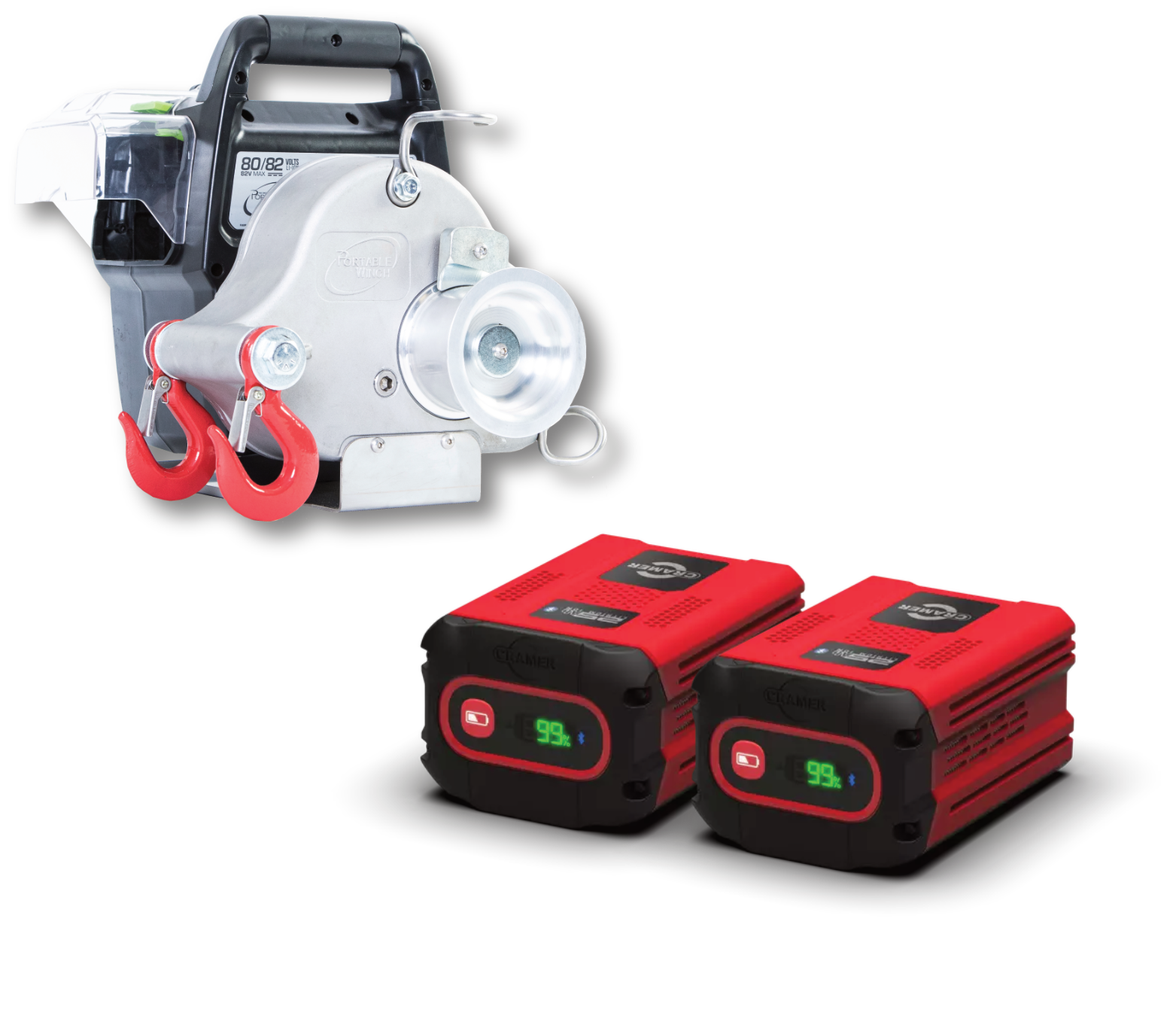

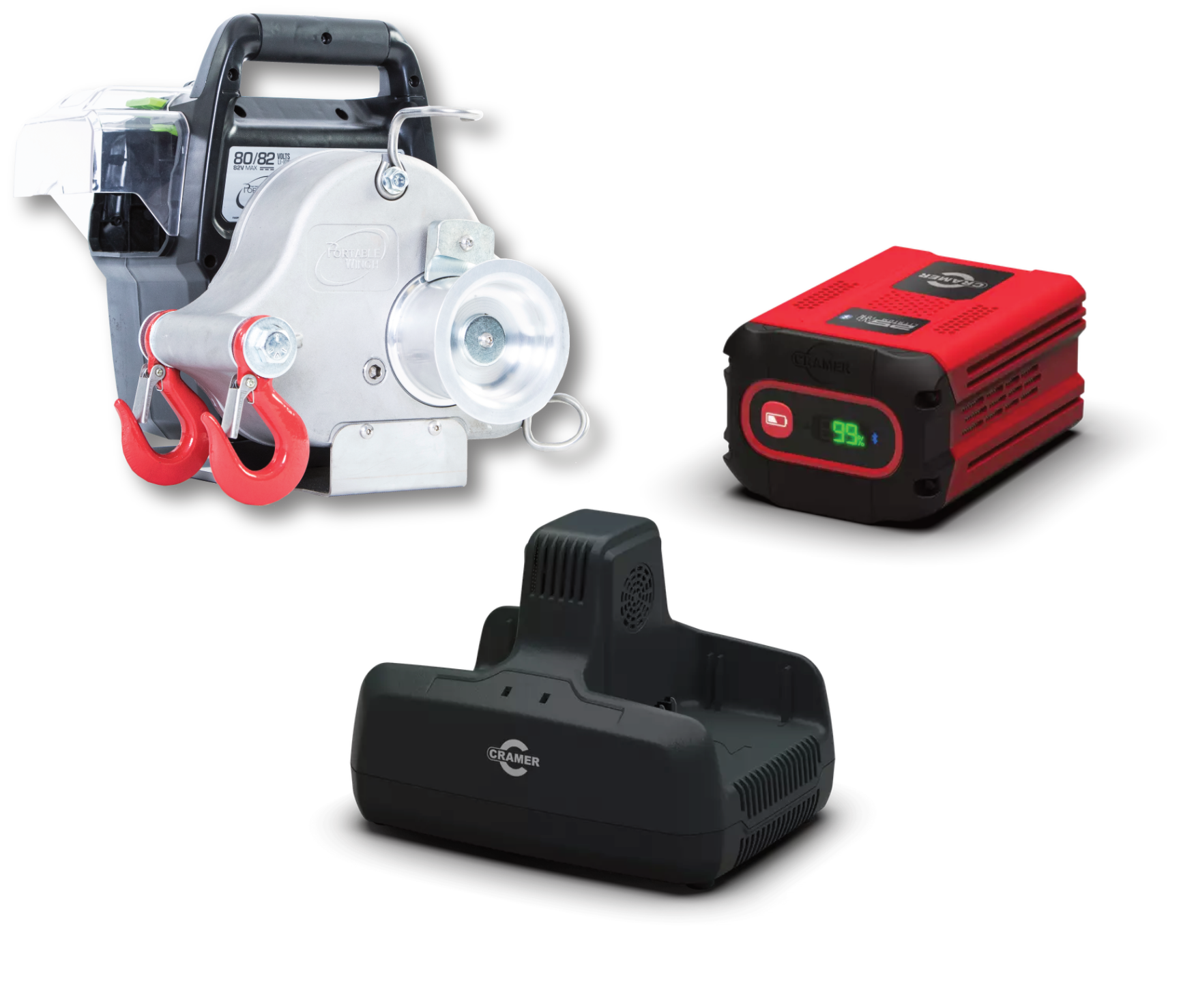

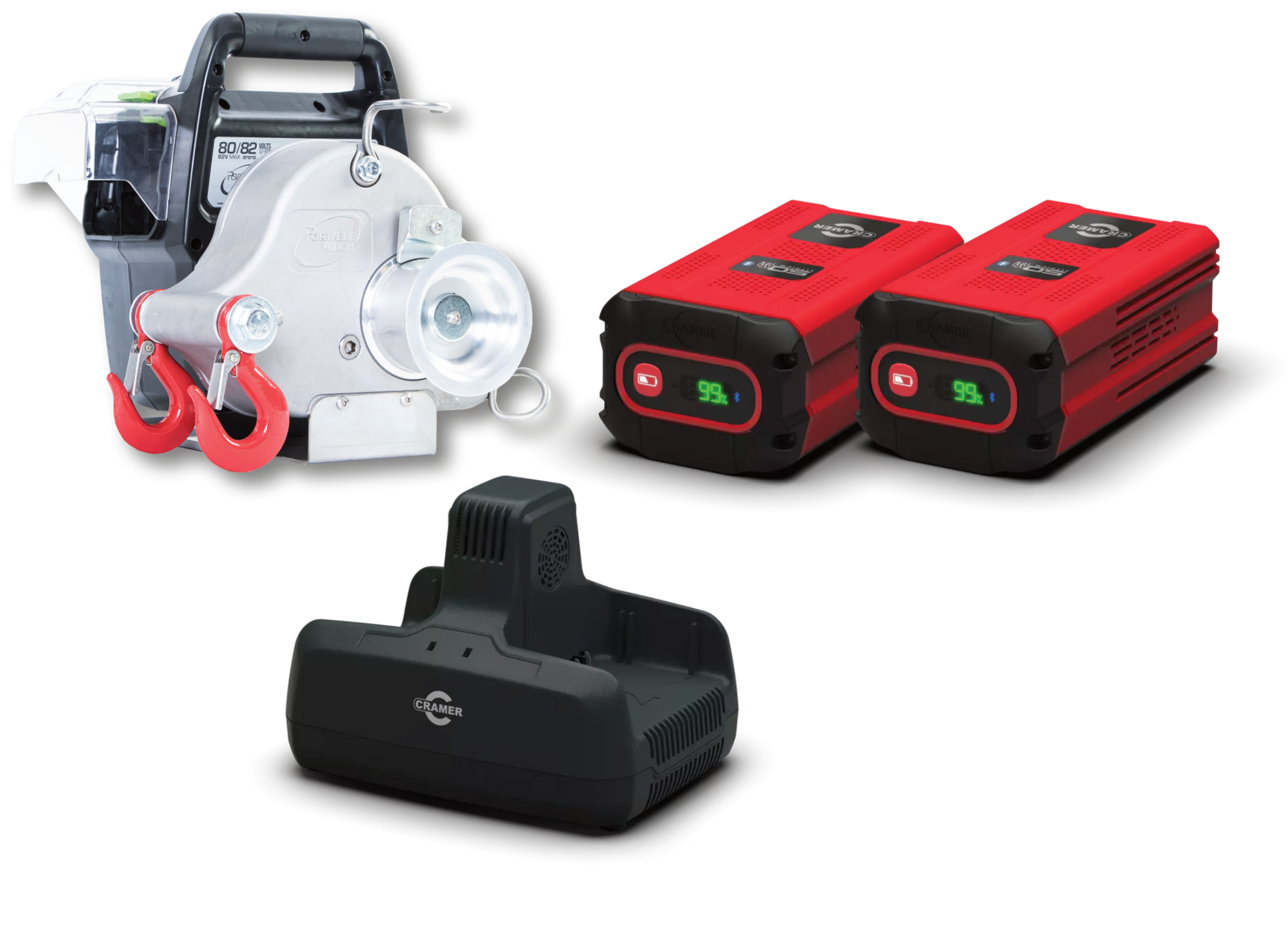

- Lithium-Ion 80/82V batteries - 2 to 5 Ah (not included)
- Direct drive (no clutch)
- Drum size: 76 mm
- Recommended rope diameter: 3/8"

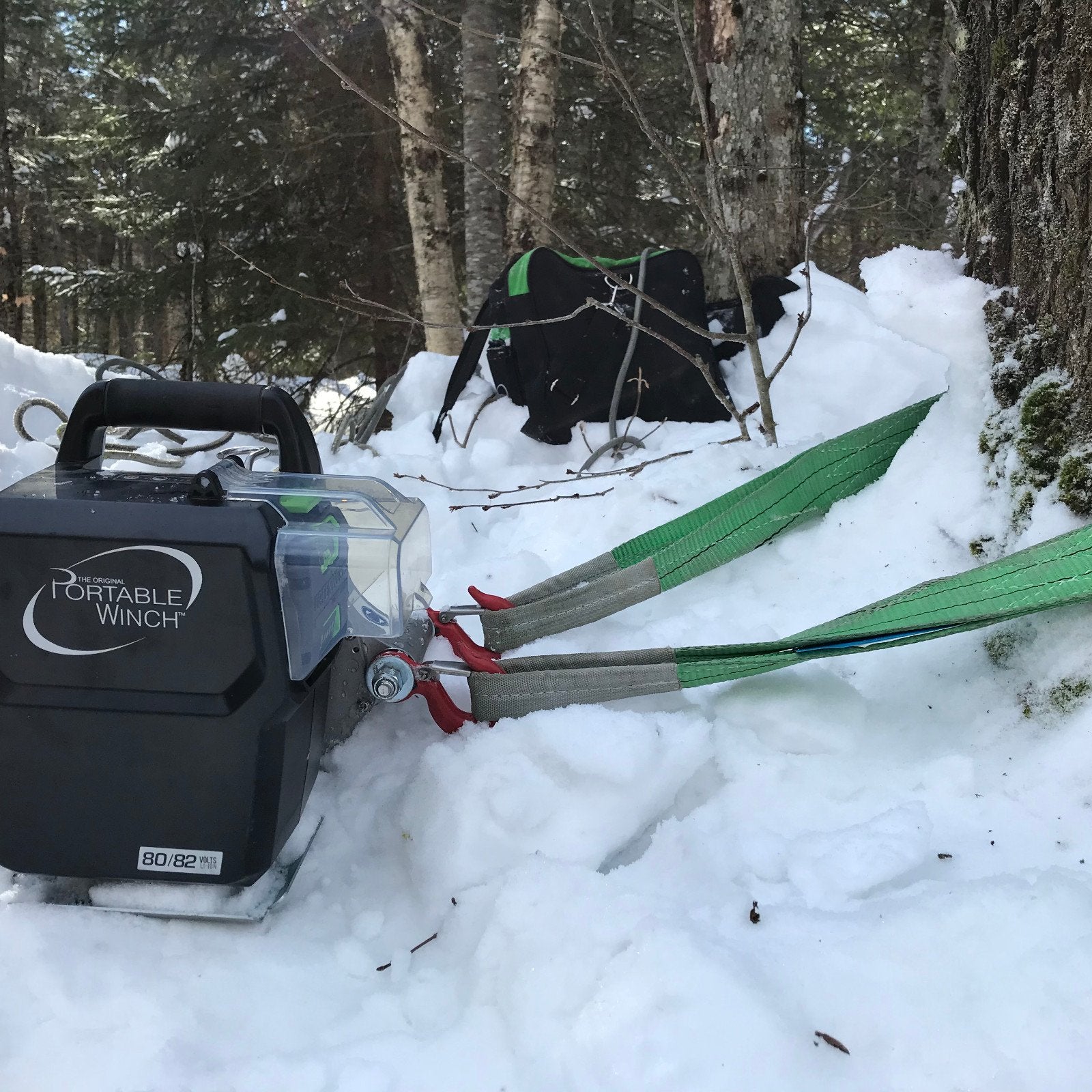

- What's included with the winch: an 8' round sling (PCA-1350)
- Not designed for lifting!
For the complete specification sheet, see under Additional Information section below.
Autonomy

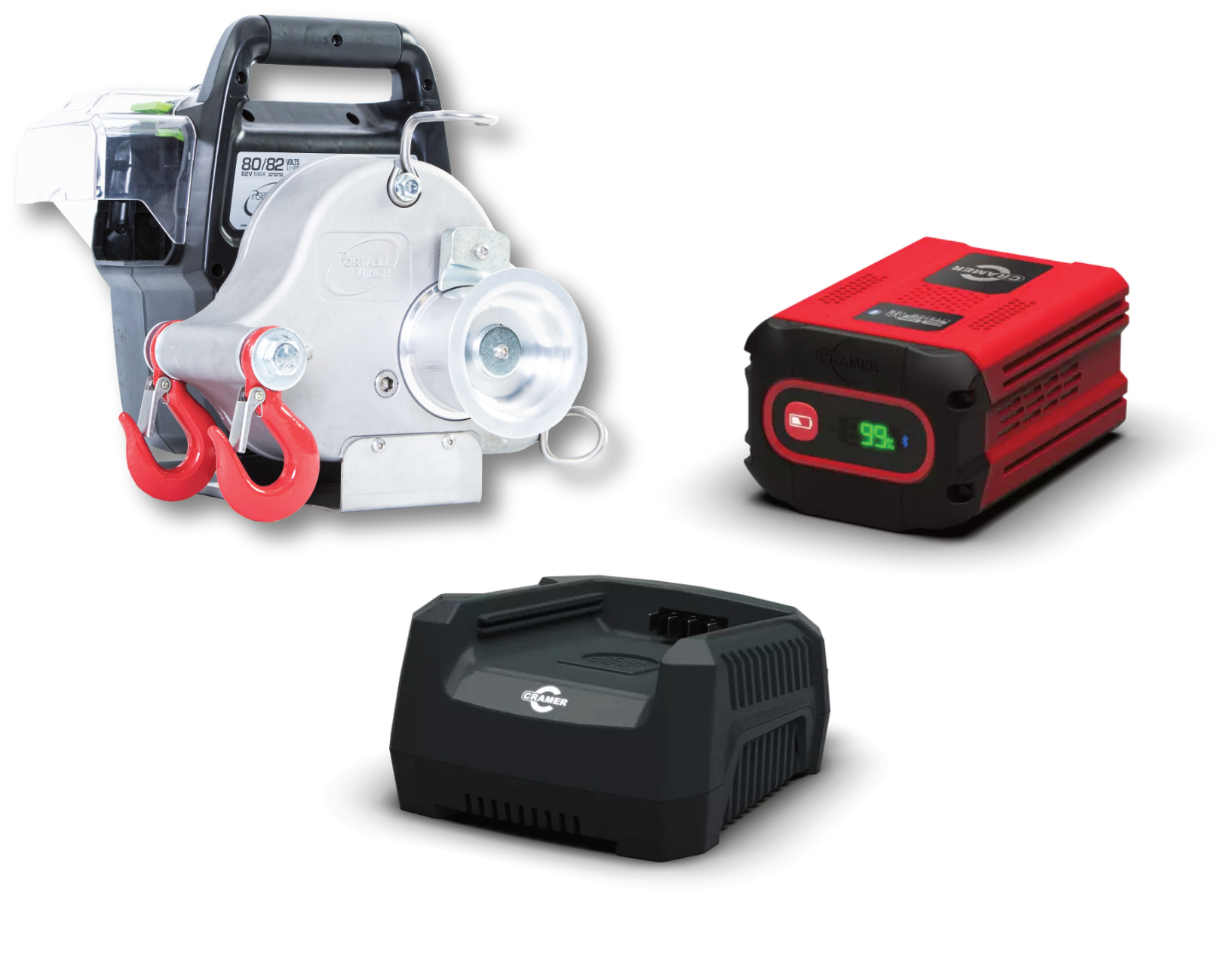

Many factors can influence the autonomy of a battery, but as a general rule of thumb, with a load of a medium weight, not asking 100% of the power of the winch, the 2.5 Ah battery will last for about 20 minutes, which translates into pulling on a distance of 760 feet in 3rd speed.

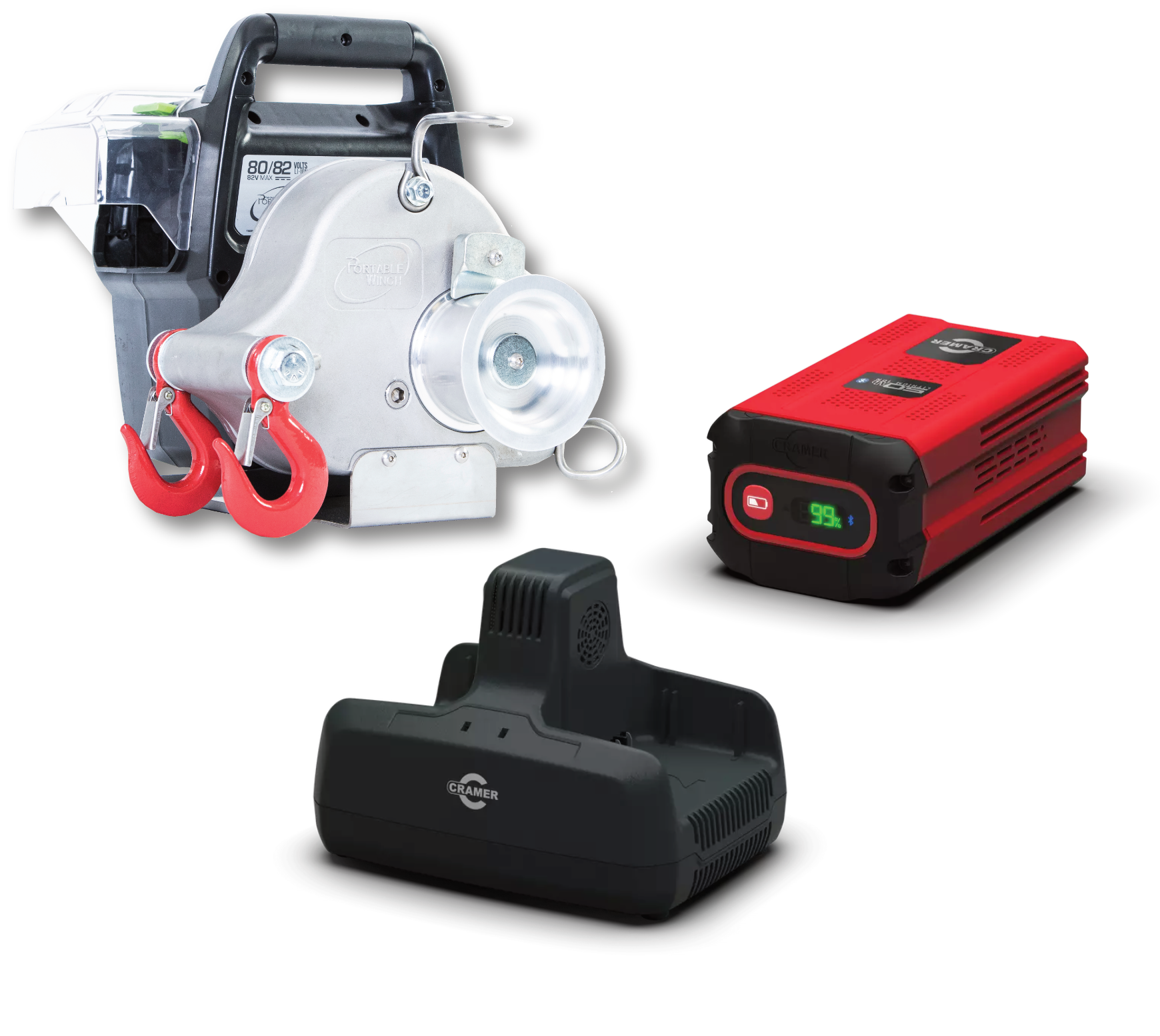

With the 5 Ah battery, you will get about 40 minutes of continuous pulling, which represents pulling over more than 1,500 ft of distance!
Useful Links
You want to know how to double the power of your winch with a block-and-tackle? See this video!
Need spare parts for your PCW3000-Li? Click here!
